Alderon Flex Power Pak Time Dose & Demand Dose Smart Control Panel (120/230V, 0-15FLA)

Print

THE LAST CONTROL PANEL YOU WILL EVER NEED!

The Alderon Flex Power Pak Simplex control panel is designed to control and monitor a single submersible pump using either demand dose or timed dose functionality. Includes pump circuitry, high water alarm, and 3 mechanical float switches the can be programmed to your desired functionality. The Alderon Flex panels feature a revolutionary menu system that enables maximum field configuration and statistics tracking. A convenient setup wizard is included in the menu to get the panel configured to your desired functionality in a few simple steps. The Alderon Flex Power Pak can be used in almost any pumping application!

Made In USANEMA 4XUL Listed

In Stock

$719.00MSRP: $879.00

Item #:2010503

Manufacturer: Alderon


FLEX POWER PAK SPECIFICATIONS

  • Controls Pumps at 120/230VAC, Single Phase, 0-15 FLA
  • Includes (3) Mechanical Floats w/ 20ft Cords

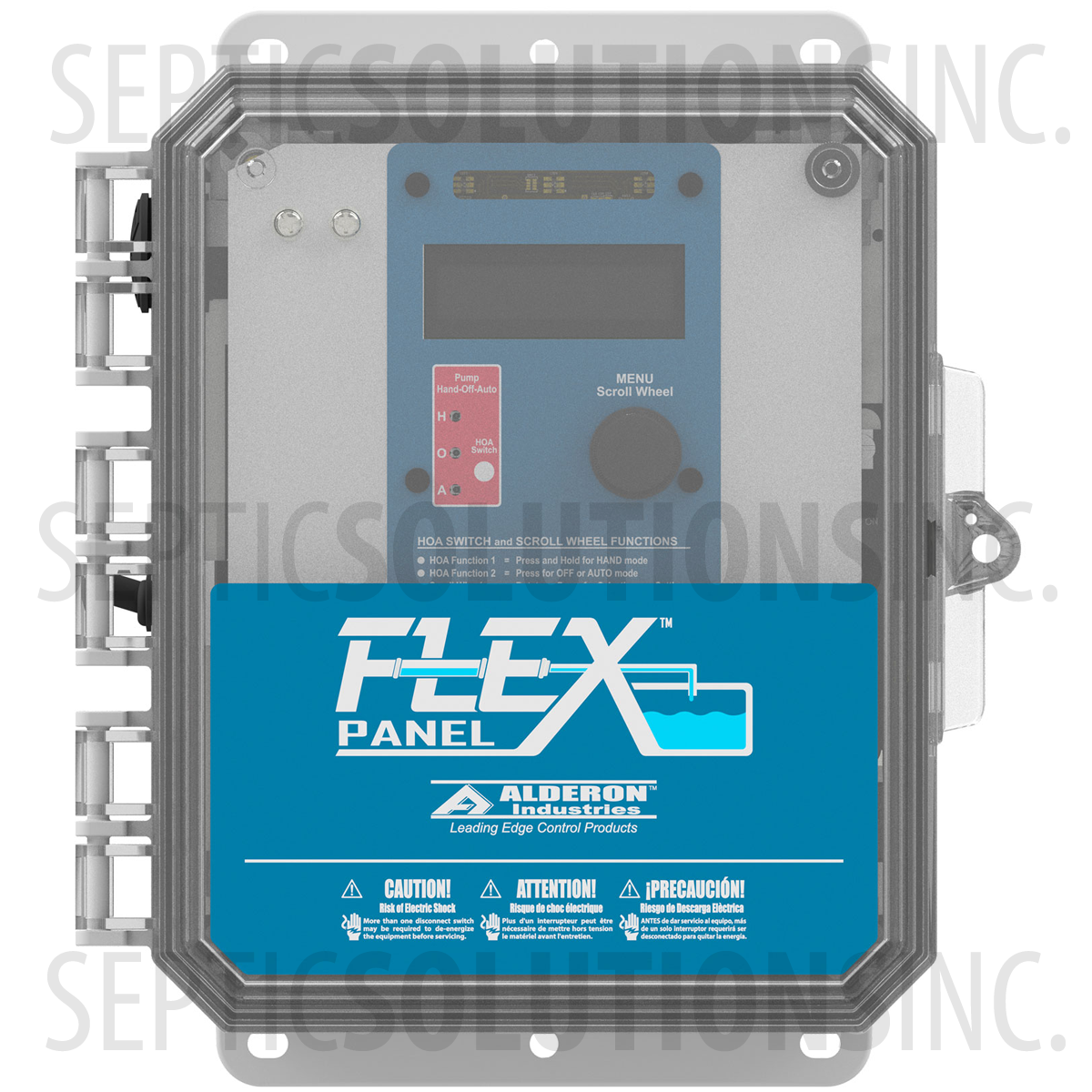

  • Clear Door - View LED Screen and Multi LED Alarms and Status Indicators
  • Programmable for Time Dosing or Demand Dosing
  • Advanced Menu System to Maximum Field Configuration Options
  • Simple Setup Wizard in the Menu, Configures in minutes!
  • High decibel alarm buzzer (100 dB)
  • Pump Hand/Off/Auto Toggle with Indicator Light
  • Exterior Test Toggle Switch to Test Alarm and Quick View Pump/Alarm Statistics
  • Field wiring terminal strips
  • Conformal Coated Circuit Boards for Reliable Thermal and Moisture Protection
  • Built-In Printed Circuit Board Surge Protection
  • Power Relay Instead of IEC Motor Contactor (100,000 cycle rating)
  • Motor Circuit Breaker
  • Automatic Resettable Alarm and Control Fuses
  • Pad-Lockable NEMA 4X Enclosure, UL 508A Listed
  • Dimensions: 10.00'' W x 11.25'' T x 5.00'' D
  • WHALE OF A DEAL - Three Year Warranty

FLEX POWER PAK ADVANCED FEATURES

  • Easily Change Configurations
    • Demand Dosing
    • Timed Dosing (Low Alarm/Redundant Off, Timer Enable, Peak Timer, High Alarm)
    • Accepts Transducer
    • Enable Pump Excercising
    • Seal Fail Alarm or Pump Shutdown
  • Advanced Pump Station Statistic Tracking
    • Pump Elapsed Time
    • Min/Max/Avg Pump Run Times
    • Pump Cycle Counter
    • Total Gallons Pumped
    • High Level Stats
    • Many More
  • Multi-Color Super Bright LED Light Strip
    • Green = Normal
    • Red = Alarm
    • Blue = Pump Run
    • Red/Yell = Sensor Error
    • Many More
  • Multiple Sensor Options
    • Field accepts up to 5 Float Inputs to Allow for Low Alarm and Auxiliary Switch Options
    • Configure Float, Auxiliary or 4- 20 mA Submersible Transducer

FLEX PANEL APPLICATIONS

  • NEMA 4X Enclosure for Outdoor Installations
  • Used to control a pump station with a single submersible pump
  • Time Dosing Controller allows for scheduled dosing and flow equalization
  • Programmable Smart Controller includes Elapsed Time Meter and Cycle Counter
  • Programmable Smart Controller keeps record of Time Overrides and High Water Alarms

Time Dosing control panels are used to control the amount of water a submersible pump can push to the secondary system over a period of time. The Simplex and Duplex control panels listed above are considered On Demand or Demand Dose systems. This means the pump will run when it needs to based upon the float switch in the tank. Time Dosing or Timed Dose panels use a Repeat Cycle timer in which an ON cycle and an OFF cycle is set for the pump and the timer follows that cycle repeatedly.

The reason for time dosing is to equalize the flow of water to the secondary system. In certain applications large amounts of water can be used in a short period of time. This is very hard on a septic system. With a Time Dosing control panel, you can equalize that flow by spreading it out throughout a longer period of time. The Repeat Cycle Timer will dose the system by running the pump short periods of time throughout the day versus an On Demand system (like the Simplex and Duplex Panels Above) that will pump a large amount of water all at once.

Our Time Dosing Control Panels are available in 120V and 230V. We have them for both Simplex and Duplex applications.

Alderon Flex Panel Simplex Time or Demand Dose Control Panel Downloadable Documents

FileName
FLEX-PowerPak-Simplex-Series-ManualViewDownload
