• Zoeller BN98 1/2 HP Submersible Effluent Pump - Part Number 98-0005

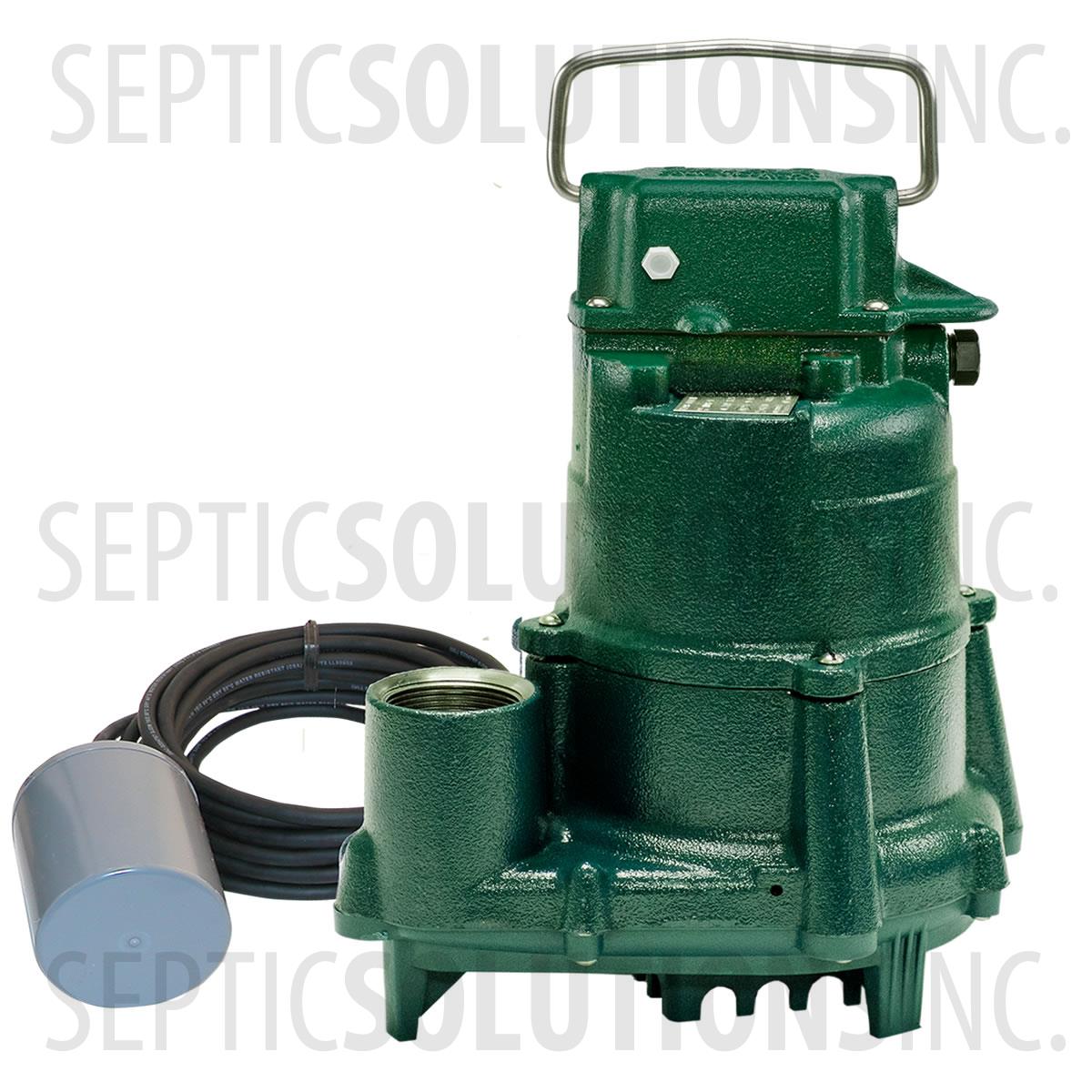

Zoeller BN98 1/2 HP Submersible Effluent Pump

Print

72 MAX GPM, 23 FT MAX HEAD, 1-1/2" DISCHARGE

The Zoeller 98 Series Effluent Pumps are professional-grade submersible effluent pumps for residential dewatering or septic effluent use. The Zoeller BN98 includes a fully cast iron body construction with corrosion-resistant, powder coated epoxy paint. Zoeller pumps are 100% factory tested and Made in the USA using a majority of U.S. content! Automatic operation is achieved with a wide angle mechanical float switch with a piggyback plug.

Made In USA

In Stock

$364.50MSRP: $486.00

Item #:98-0005

Manufacturer: Zoeller Pump

Zoeller BN98 Effluent Pump Specifications

  • Model BN98, Part No. 98-0005
  • 1/2 HP, 115VAC, 9.4A, 60 Hz
  • 61 GPM @ 10ft of Head Pressure
  • Shut Off: 23ft, Max GPM: 72
  • 1-1/2'' NPT Vertical Female Discharge, 1/2'' Solids Handling
  • Heavy Duty Cast Iron Construction
  • Non-Clog Vortex Impeller
  • Includes 10' Power Cord with Plug
  • Includes Wide-Angle Mechanical Float Switch with 10' Cord and Piggyback Plug
  • Dimensions: 10.06'' W x 7.88'' L x 12.06'' H
  • Three Year Warranty

Zoeller BN98 Effluent Pump Applications

An effluent pump is typically used in septic tank applications. Effluent is the gray wastewater that remains after the solids settle out. These pumps can handle smaller solids up to 1/2’’ in size. These units are normally used to pump discharge from a septic tank or an aerobic system to a drain field, secondary treatment system, or surface discharging point.

  • STEP Systems
  • LPP Systems
  • Mound Systems
  • Liquid Waste Transfer
  • Commercial Sump Applications
  • Effluent and Wastewater Removal

Zoeller BN98 1/2 HP Submersible Effluent Pump Downloadable Documents

FileName
98-Series-BrochureViewDownload
98-Series-Technical-DataViewDownload
