• Alderon Smart IQ Time Dosing Control Panel (120/230V, 0-15FLA) - Part Number S230SMARTIQ

Alderon Smart IQ Time Dosing Control Panel (120/230V, 0-15FLA)

Print

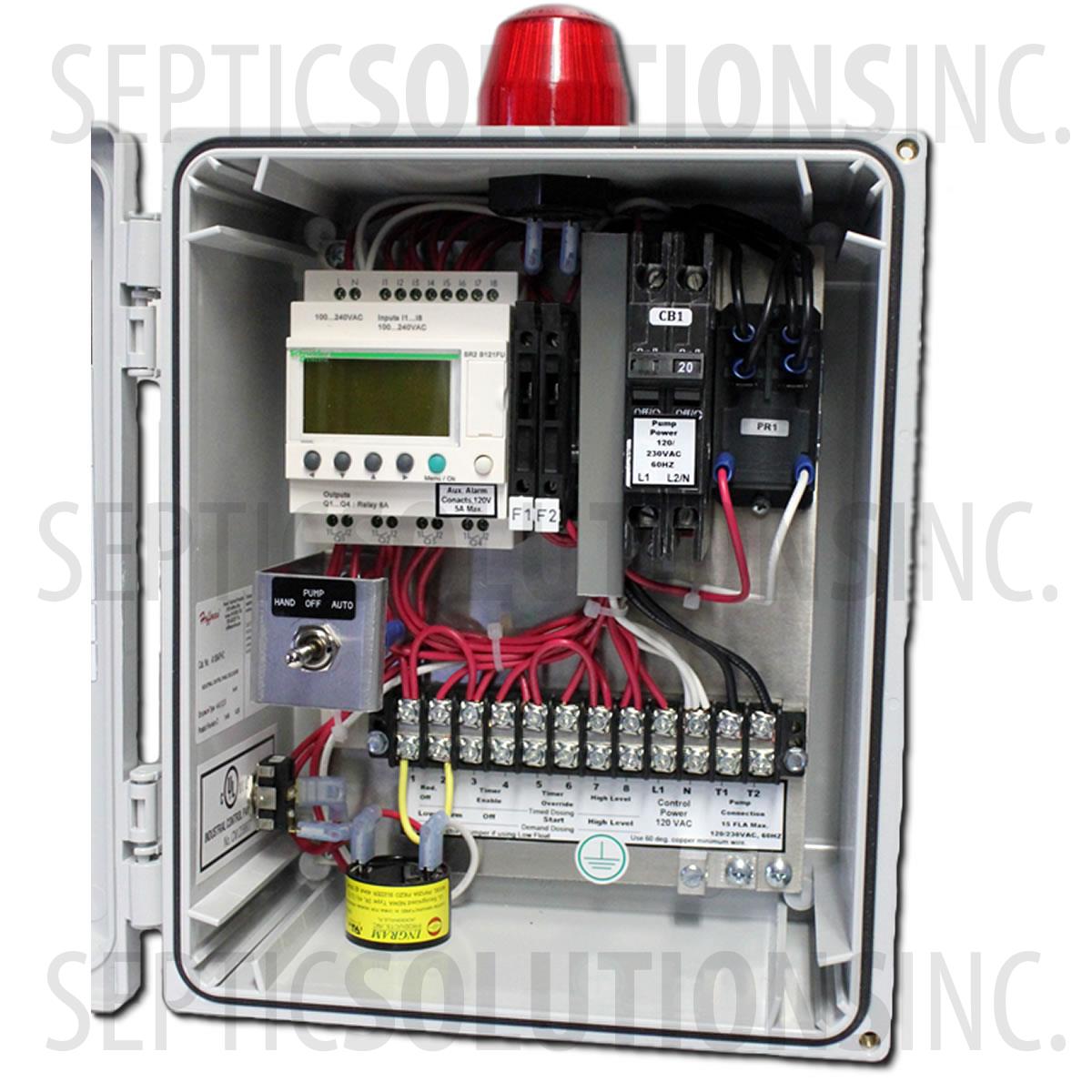

The Alderon Smart IQ panel is designed to control and monitor a single submersible pump. Includes pump circuitry, high water alarm, and 3 mechanical float switches for Timer Enable, Timer Override, and Alarm controls. A programmable Smart controller monitors the time dosing function.

THIS ITEM HAS BEEN DISCONTINUED AND REPLACED BY THE FLEX POWER PAK CONTROL PANEL.

Made In USANEMA 4XUL Listed

Discontinued

$749.00MSRP: $899.00

Item #:S230SMARTIQ

Manufacturer: Alderon

SEPTIC SOLUTIONS HAS DISCONTINUED
THIS ITEM FROM OUR INVENTORY

SMART IQ SPECIFICATIONS

  • 120/230VAC, Single Phase, 0-15 FLA
  • (3) Mechanical Floats w/ 20ft Cords
  • Programmable Smart Controller For Time Dosing Function
  • Programmable Timed Doses, Programmable Timer Override
  • Elapsed Time Meter, Event Cycle Counter in Smart Controller
  • 360 degree red alarm light, High decible alarm buzzer (100 dB)
  • Pump Hand/Off/Auto heavy duty toggle
  • Alarm On/Test/Mute heavy duty toggle
  • Field wiring terminal strips
  • Power Relay Instead of IEC Motor Contactor (100,000 cycle rating)
  • Motor Circuit Breaker
  • 3 Amp Control/Alarm Fuses
  • NEMA 4X Enclosure, UL 508A Listed
  • Dimensions: 10.00'' W x 11.25'' T x 5.00'' D
  • WHALE OF A DEAL - Three Year Warranty

SMART IQ APPLICATIONS

  • NEMA 4X Enclosure for Outdoor Installations
  • Used to control a pump station with a single submersible pump
  • Time Dosing Controller allows for scheduled dosing and flow equalization
  • Programmable Smart Controller includes Elapsed Time Meter and Cycle Counter
  • Programmable Smart Controller keeps record of Time Overrides and High Water Alarms

Time Dosing control panels are used to control the amount of water a submersible pump can push to the secondary system over a period of time. The Simplex and Duplex control panels listed above are considered On Demand or Demand Dose systems. This means the pump will run when it needs to based upon the float switch in the tank. Time Dosing or Timed Dose panels use a Repeat Cycle timer in which an ON cycle and an OFF cycle is set for the pump and the timer follows that cycle repeatedly.

The reason for time dosing is to equalize the flow of water to the secondary system. In certain applications large amounts of water can be used in a short period of time. This is very hard on a septic system. With a Time Dosing control panel, you can equalize that flow by spreading it out throughout a longer period of time. The Repeat Cycle Timer will dose the system by running the pump short periods of time throughout the day versus an On Demand system (like the Simplex and Duplex Panels Above) that will pump a large amount of water all at once.

Our Time Dosing Control Panels are available in 120V and 230V. We have them for both Simplex and Duplex applications.

Alderon Smart IQ Time Dosing Control Panel Downloadable Documents

FileName
S230SMARTIQ_InstallViewDownload
S230SMARTIQ_SpecViewDownload
