• Navigator Series Mechanical Pump Float Switch with 30' Cord, No Plug - Part Number 20A019-E

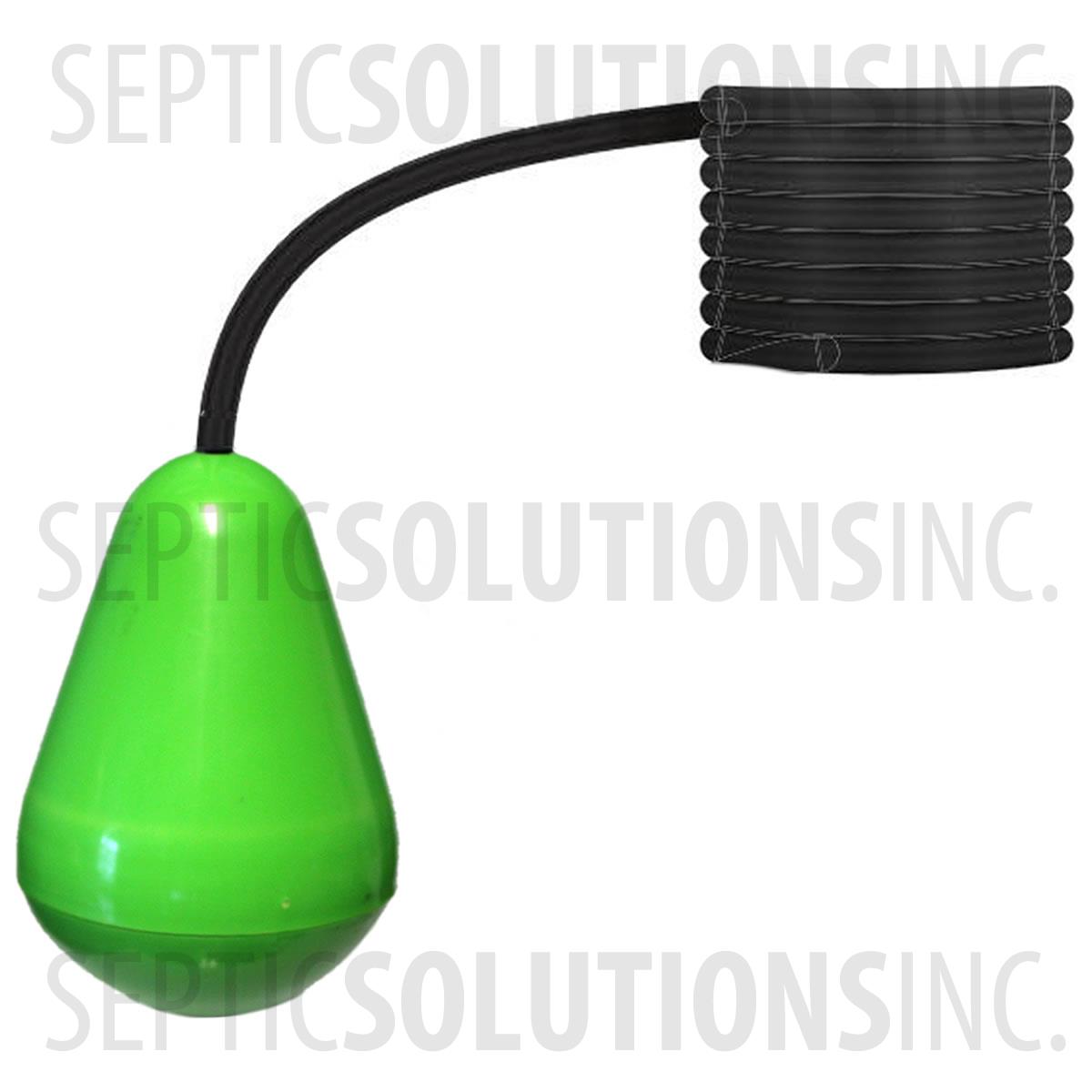

Navigator Series Mechanical Pump Float Switch with 30' Cord, No Plug

Print
The E-Navigator Series mechanical float switches combine the reliability of mercury with the environmentally friendliness of mechanical switches to become one of the most reliable and versatile floats available on the market. The E-Navigator is designed to control pumps up to 1/2 HP at 120VAC or 1.0 HP at 230VAC. This float switch is normally open and is activated to "ON" in the raised position.
RUCSA

In Stock

$84.00MSRP: $95.00

Item #:20A019-E

Manufacturer: SPI

Float Clamp / Weight Options:

Ships Today
with FREE SHIPPING

Order in the next: -- hr --min --sec

Ship Date Thu, Dec 4

Delivery: 1-4 Business Days

  • Normally Open Contacts for Emptying Applications
  • Activates To ON In The Raised Position
  • Designed For Use In Sewage and Wastewater Applications
  • Controls Pumps Up To 13 Amps At 120VAC and 230VAC
  • No Plug, Must Be Hard Wired Directly To Pump or Panel
  • Custom Cord Lengths Available, Call 1-877-925-5132
  • 75 Degree Wide Angle Mechanical Pump Switch
  • Activates at 45 degrees above horizontal, Deactivates at 30 degrees below horizontal
  • 30' Cord, No Plug
  • 13 Amp, 16/2 SJOW Wire, 120V/240V, No Plug
  • Controls Pumps Up To 1/2 HP @ 120V and 1 HP @ 240V
  • Adjustable Pumping Range of 6 to 36 Inches
  • SST Pipe Mount Assembly Included
  • UL Listed, CSA Listed
