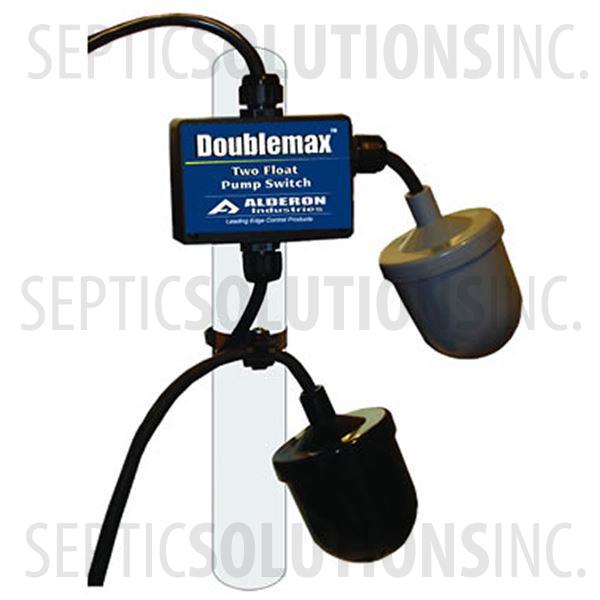

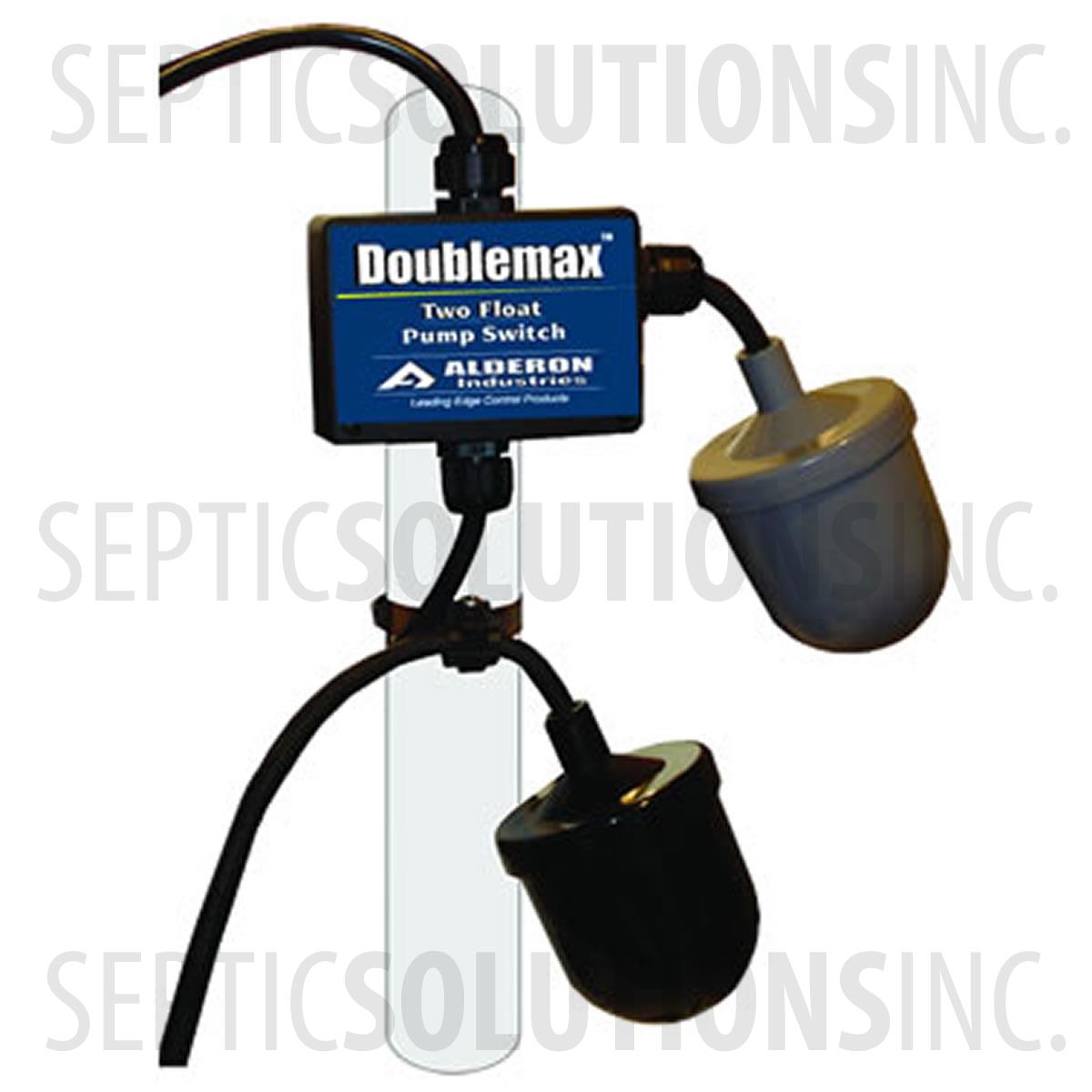

Alderon DoubleMax Dual Mechanical Pump Float Switch with 20' Cord, 120VAC Piggyback Plug

Print

This mechanically activated dual float pump switch has normally open contacts designed for emptying applications. The switch is activated to "ON" in the raised position. Dual float switches allow for a more flexible pumping range than a single float switch. The top float is designed to turn the pump on while the bottom float will turn the pump off.

Made In USAUL Listed

In Stock

$159.00MSRP: $189.00

Item #:7639

Manufacturer: Alderon

  • Normally Open Contacts for Emptying Applications
  • Activates To ON In The Raised Position
  • Designed For Use In Sewage and Wastewater Applications
  • Controls Pumps Up To 15 Amps At 120VAC
  • Piggy-Back Plug For Easy Installation
  • Custom Cord Lengths Available, Call 1-877-925-5132
  • Dual Mechanical Pump Switches
  • 15 Amp, 14/3 SJOW Wire, 120V, Piggyback Plug
  • Controls Pumps Up To 1 HP @ 120V
  • Adjustable Pumping Range of 2 to 54 Inches
  • SST Pipe Mount Assembly Included
  • UL Listed, CSA Listed, Heavy Duty Contacts
  • Normally Open Contacts for Emptying Applications
  • Activates To ON In The Raised Position
  • Designed For Use In Sewage and Wastewater Applications
  • Controls Pumps Up To 15 Amps At 120VAC
  • Piggy-Back Plug For Easy Installation
  • Custom Cord Lengths Available, Call 1-877-925-5132
