• Little Giant Model 9EN-CIA-RF 4/10 HP Submersible Effluent Pump - Part Number 509209

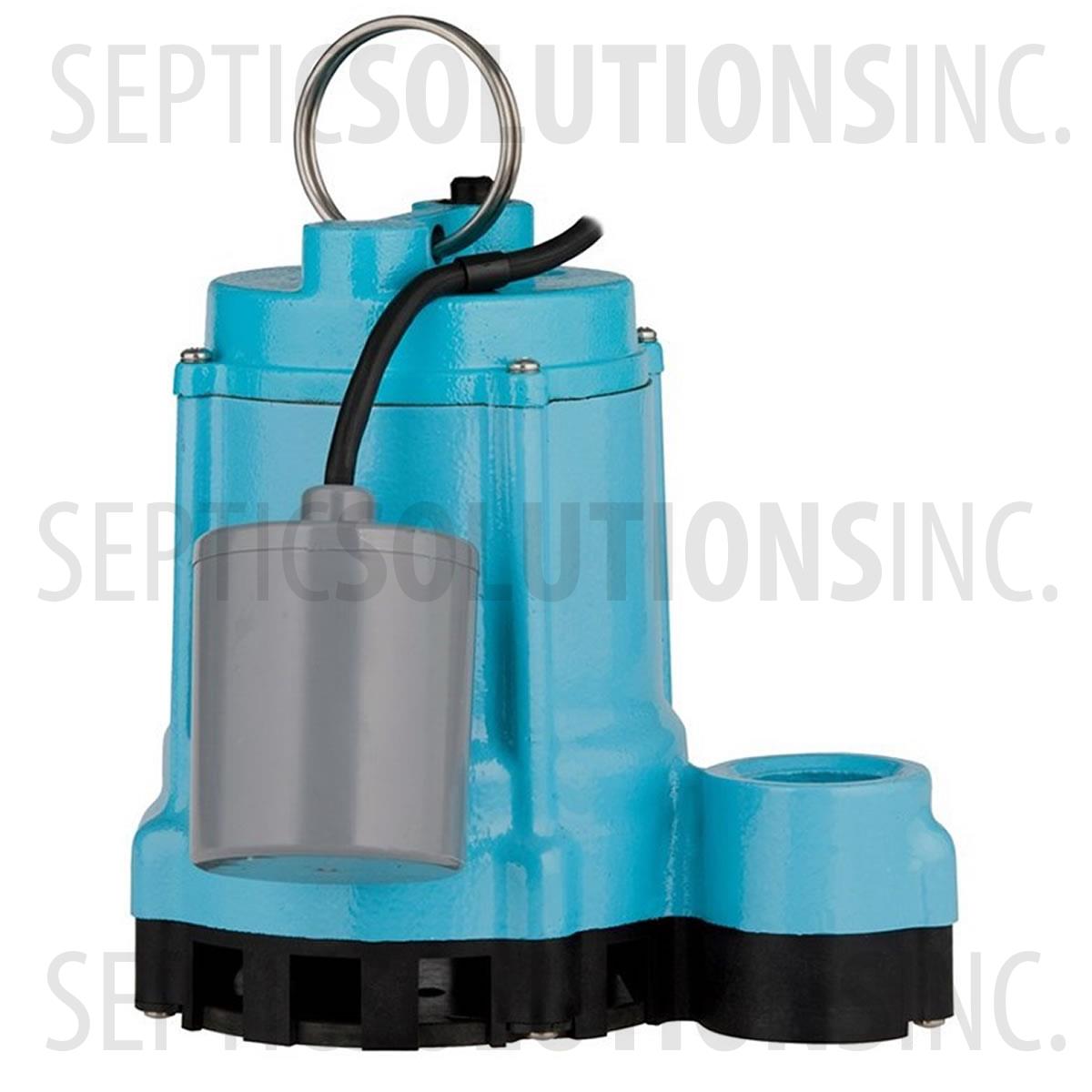

Little Giant Model 9EN-CIA-RF 4/10 HP Submersible Effluent Pump

Print

80 MAX GPM, 32 FT MAX HEAD, 1-1/2" DISCHARGE

Submersible effluent pumps are designed to handle treated wastewater from a septic tank or an aerobic system. The Little Giant 9EN series provides high efficiency and long term dependability.

In Stock

$275.00MSRP: $325.00

Item #:509209

Manufacturer: Little Giant

LITTLE GIANT 9EN SPECIFICATIONS

  • 4/10 HP, 115VAC, 9.0A, 60 Hz
  • 80 GPM @ 5 ft of Head Pressure
  • Shut Off: 32 ft, Max GPM: 80
  • 1-1/2'' NPT Vertical Female Discharge, 3/4'' Solids Handling
  • Includes 20ft Mechanical Float Switch for Automatic Operation
  • Three Year Warranty
  • Dimensions: 9.6'' L x 6.8'' W x 9.15'' T

LITTLE GIANT 9EN APPLICATIONS

Our Sump and Effluent pumps are designed to handle wastewater with minimal solids or clear water. Most of our Effluent pumps have a 1-1/2’’ NPT discharge and some of the large units even have a 2’’ discharge. These pumps can handle smaller solids up to 3/4’’ in size. These units are normally used to pump discharge from a septic tank or an aerobic system to a drain field, secondary treatment system, or surface discharging point.

  • Effluent and Wastewater Removal
  • Residential Drainage
  • Non-Potable Water Removal
  • Non-Potable Water
  • Handles Up To 3/4'' Solids
  • Includes Float Switch For Automatic Operation
  • Heavy Duty Cast Iron Design

Little Giant 9EN-CIA-RF 4/10 HP Effluent Pump Downloadable Documents

FileName
509209_SpecViewDownload
