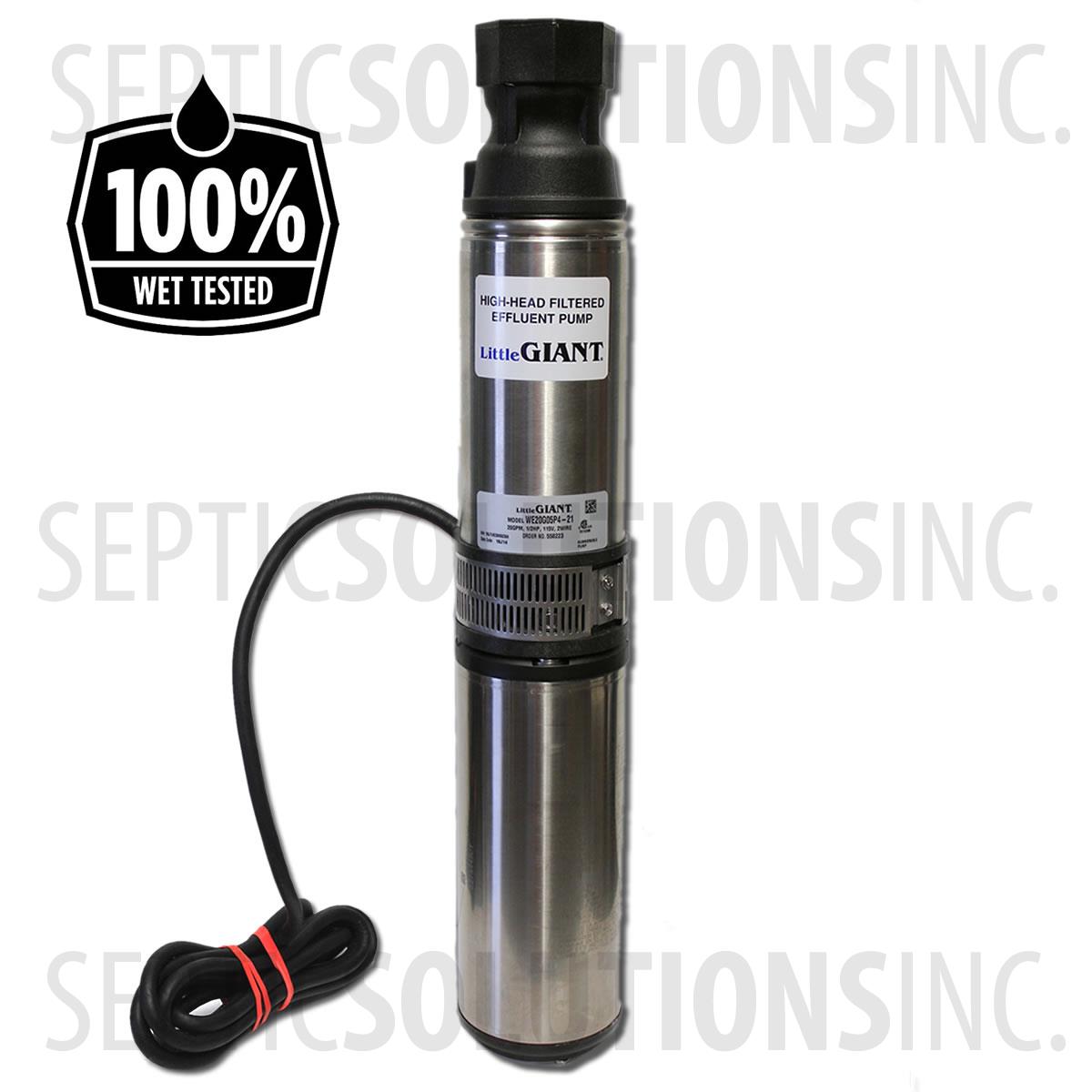

Franklin Electric Little Giant Mid-Suction High Head Pump - 1/2 HP, 10 GPM

Little Giant WE10 Specifications

• Model WE10G05P4-21 (#558221)

• 10 Gallons Per Minute, 250 Feet of Head (108 psi)

• 1/2 HP, 115V, 60Hz, 10.0A, 1 Ph, 3450 RPM
• 1-1/4 NPT Female Threaded Discharge
• Mid-Suction with Double Screen
• Heavy Duty 2-Wire With Ground Cord Attached (10 Feet)

• Built-In Check Valve
• Dimensions: 21.91'' L x 3.75'' Diameter
• Condition: Brand New!
• WHALE OF A DEAL - EXTENDED TWO YEAR WARRANTY!
  (The Standard Manufacturer's Warranty is one year and Septic Solutions' warranties this unit in full for an additional year)

Little Giant WE10 Applications

The Little WE Series High Head Effluent Pumps are most commonly used in high pressure water removal applications such as spray irrigation or underground drip irrigation. These submersible pumps can handle only clean, treated effluent with no solids. They are normally installed after an Aerobic Treatment System.

• Spray Irrigation
• Underground Drip Systems
• Mound Systems
• High Pressure or Long Distance Pumping
• Can Only Handle Clear Water or Treated Wastewater
• Commonly Used After Aerobic Septic Systems
• Replaces Aqua-Duty, Franklin WPS, Schaeffer, Red Jacket, and Other Models
• Compatible with Models 10FE05P4-2W115 and 10LE05P4-2W115

Franklin Electric / Little Giant
WE Series Effluent Pumps

The Franklin Electric Little Giant High Head Effluent pump is a mid-suction unit. This means the pump will intake water at the center of the unit. Generally this is the best design in an aerobic system, because it allows any solid material that makes it to the pump tank to settle on the bottom of the tank and prevents the intake screen of the pump from clogging up with debris causing eventually the pump to fail prematurely. The Franklin Electric Little Giant is available in both 10 GPM and 20 GPM models, however the 20 GPM model is by far the most commonly used.

Little Giant Mid-Suction High Head Submersible Pump (10 GPM) Downloadable Documents
