500 Gallon Simplex Fiberglass Pump Station with 1/2 HP Sewage Ejector Pump
Print70" Diameter x 72" Tall Basin • 25 ft Max Head • Up to 120 GPM • Pre-Assembled Sewage Lift Station

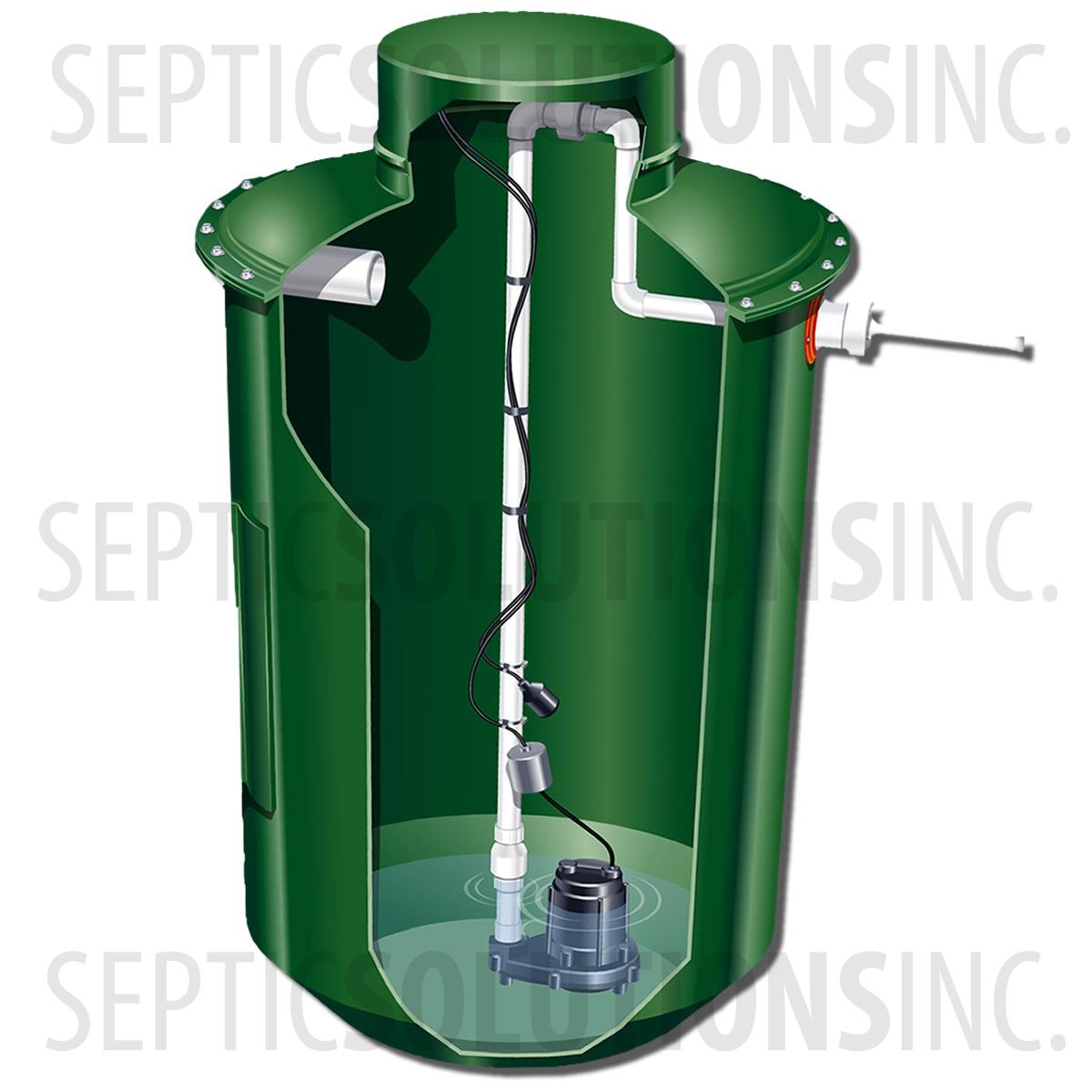

This 500-gallon simplex sewage ejector pump station is a complete, ready-to-install solution designed for residential raw sewage and wastewater applications. It features a large fiberglass basin paired with a reliable 1/2 HP Little Giant sewage ejector pump, making it an excellent choice for homes with basements, multiple below-grade fixtures, or sites where gravity drainage to the septic tank or city sewer is not possible.
Built To Order Within 1-2 Business Days
Item #:500FPT-12S
Manufacturer: Septic Solutions
FEATURES & BENEFITS
- Pre-Assembled & Ready to Install — Arrives fully assembled with pump, basin, access cover, discharge piping, and mechanical float switch for quick installation.
- Heavy-Duty Fiberglass Construction — 500-gallon tank (70" diameter x 72" tall) engineered for direct burial with excellent corrosion resistance and structural strength.
- Little Giant 1/2 HP Sewage Ejector Pump — Handles up to 2" solids, ideal for raw sewage containing toilet paper, human waste, and light debris.
- High Flow Performance — Delivers up to 120 GPM with a maximum head of 25 ft.
- Easy Access — Includes a 24" Polylok access cover; optional risers available to bring service to grade.
- Reliable Automatic Operation — Includes a wide-angle mechanical float switch.
TECHNICAL SPECIFICATIONS
500-Gallon Fiberglass Tank
- Dimensions: 70" Diameter x 72" Tall
- Heavy-duty fiberglass for direct burial
- 24" Polylok access cover
- 4" inlet with grommet
- 2" SCH 40 discharge pipe sealed with grommet
- Cord seals for power and float switch
Little Giant 1/2 HP Sewage Ejector Pump (Model 10SC-CIA-RF)
- 1/2 HP, 115V, 11.0A, 60 Hz, single phase
- Performance: 80 GPM @ 15 ft head • Max 120 GPM • Shut-off: 25 ft
- 2" NPT vertical female discharge
- Handles 2" solids
- Includes 20 ft mechanical float switch with piggyback plug
- Dimensions: 10.60" L x 8.60" W x 14.00" H
- 3-Year Manufacturer Warranty
Important Note: Sewage ejector pumps are designed for pumping raw sewage into a septic tank or gravity sewer main. For pumping to a pressurized force main, use grinder pumps instead.
APPLICATIONS
- Homes with basements or below-grade bathrooms
- Pumping sewage from the house to a septic tank
- Retrofitting existing properties to connect to city sewer
- New construction on lots without gravity drainage
- Larger residential systems requiring higher capacity
WHAT'S INCLUDED

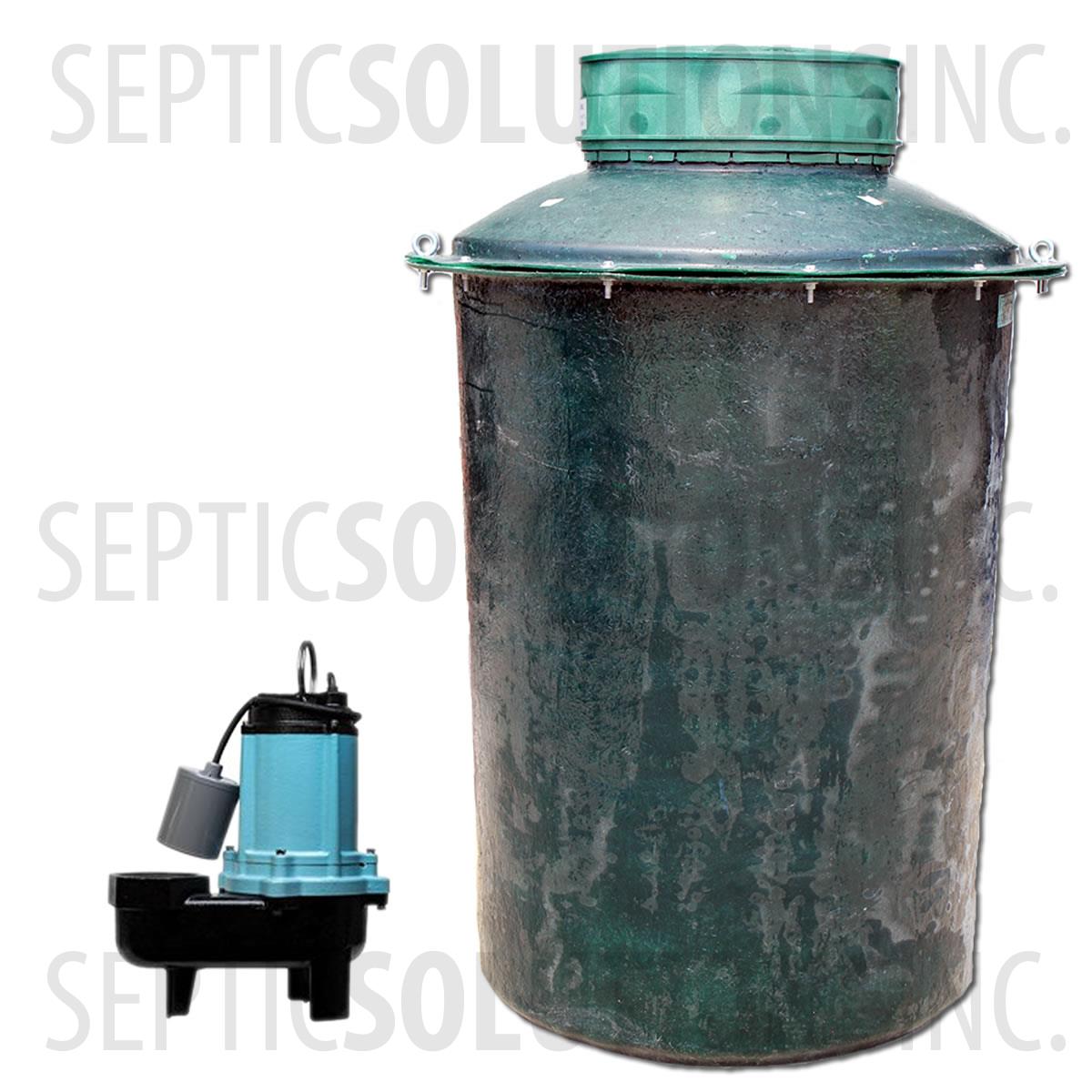

- 500-gallon fiberglass pump basin
- Little Giant 1/2 HP sewage ejector pump (10SC-CIA-RF)
- Wide-angle mechanical float switch
- 24" Polylok access cover
- Pre-installed discharge piping and seals
- All necessary grommets and hardware
RELATED ITEMS SOLD SEPARATELY
These items are considered optional but are often added to our pump stations:
- Alarm and/or Control Panel (Choose Only One of These Options):
- Other Optional Items:
This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.
