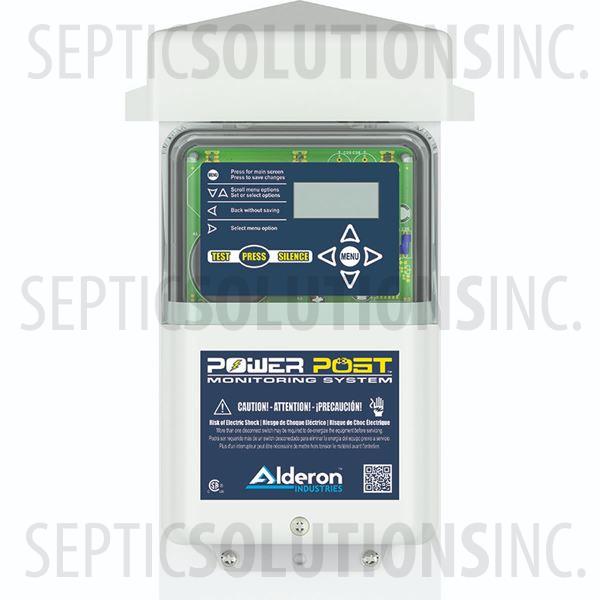

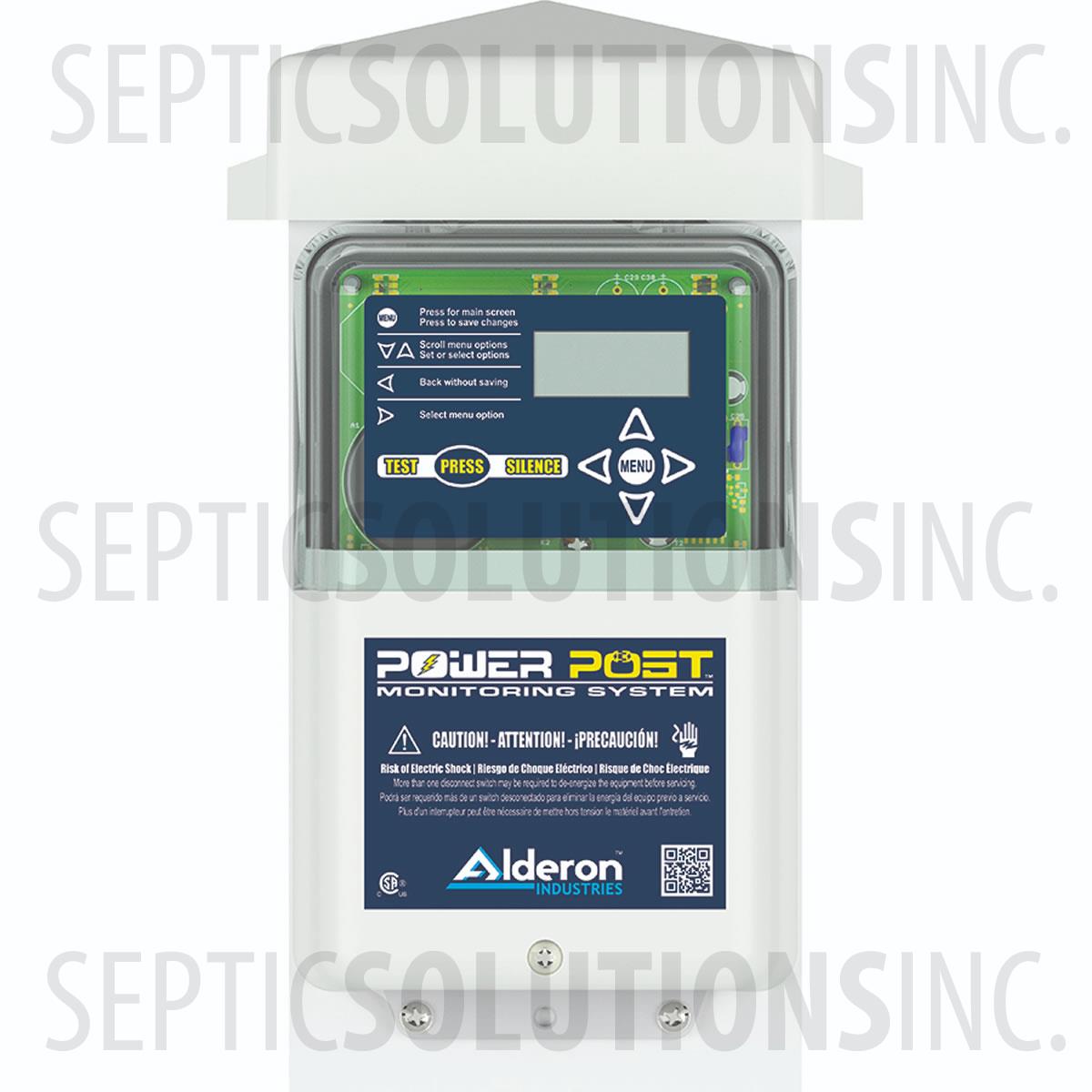

Alderon PowerPost Pedestal Simplex Pump Control Panel with Integrated High Water Alarm for Timed Dose or Demand Dose

Print

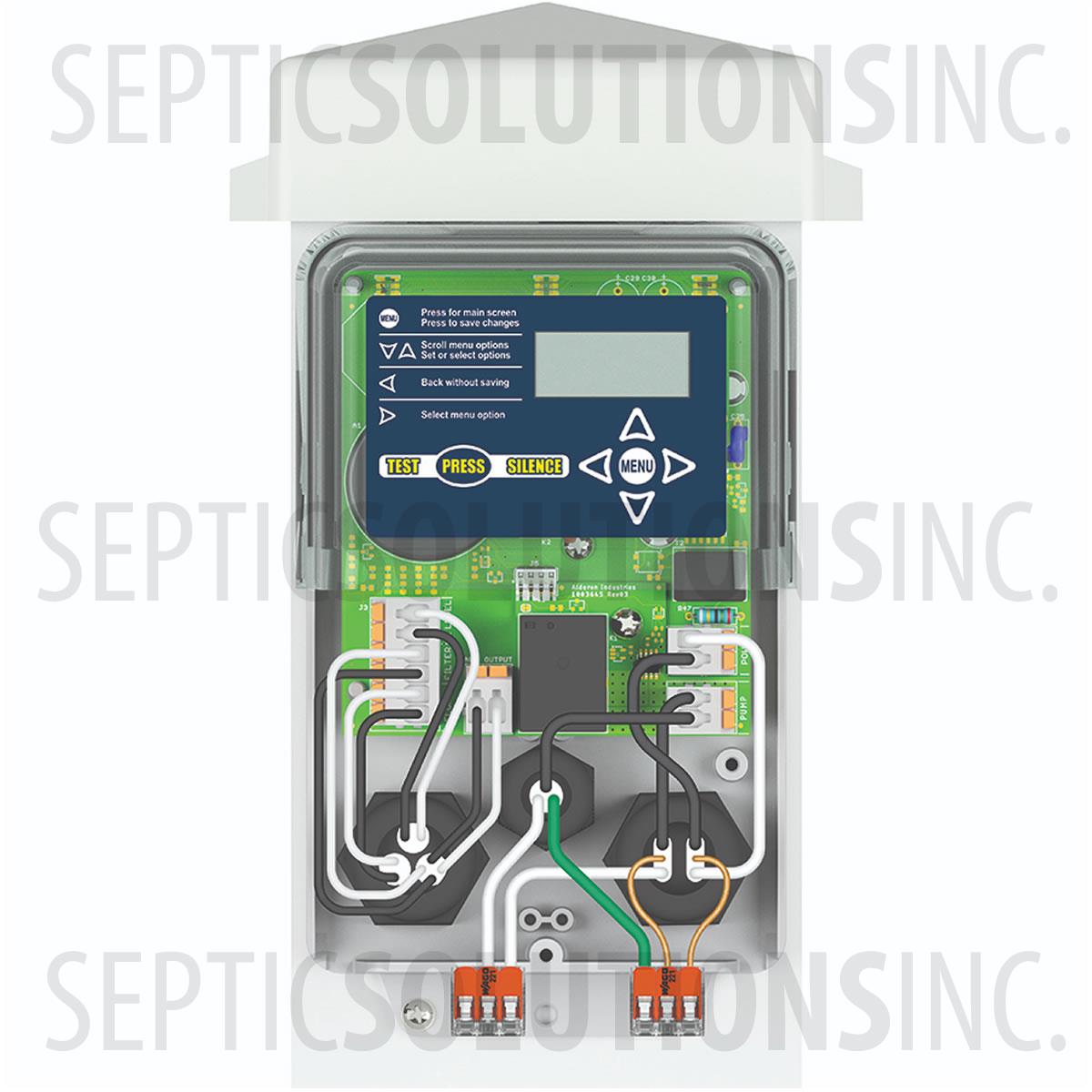

The Alderon PowerPost Control Panel can be used to make a professional and safe connection for pump power and float switch wiring connection to your pumping station. The PowerPost Control Panel can be used in a wide variety of pumping applications including Timed Dosing and Demand Dosing systems. The PowerPost Control Panel includes an integrated high water alarm.

Menu keys are provided to program settings and view data such as Pump Cycle Counts, Pump Amps, Elapsed Time, Alarm Events, and much more.

Made In USAUL Listed

In Stock

$589.00MSRP: $775.00

Item #:2011786

Manufacturer: Alderon

Ships Today
with FREE SHIPPING

Order in the next: -- hr --min --sec

Ship Date Wed, Oct 8

Delivery: 1-4 Business Days

POWER POST CONTROL PANEL FEATURES

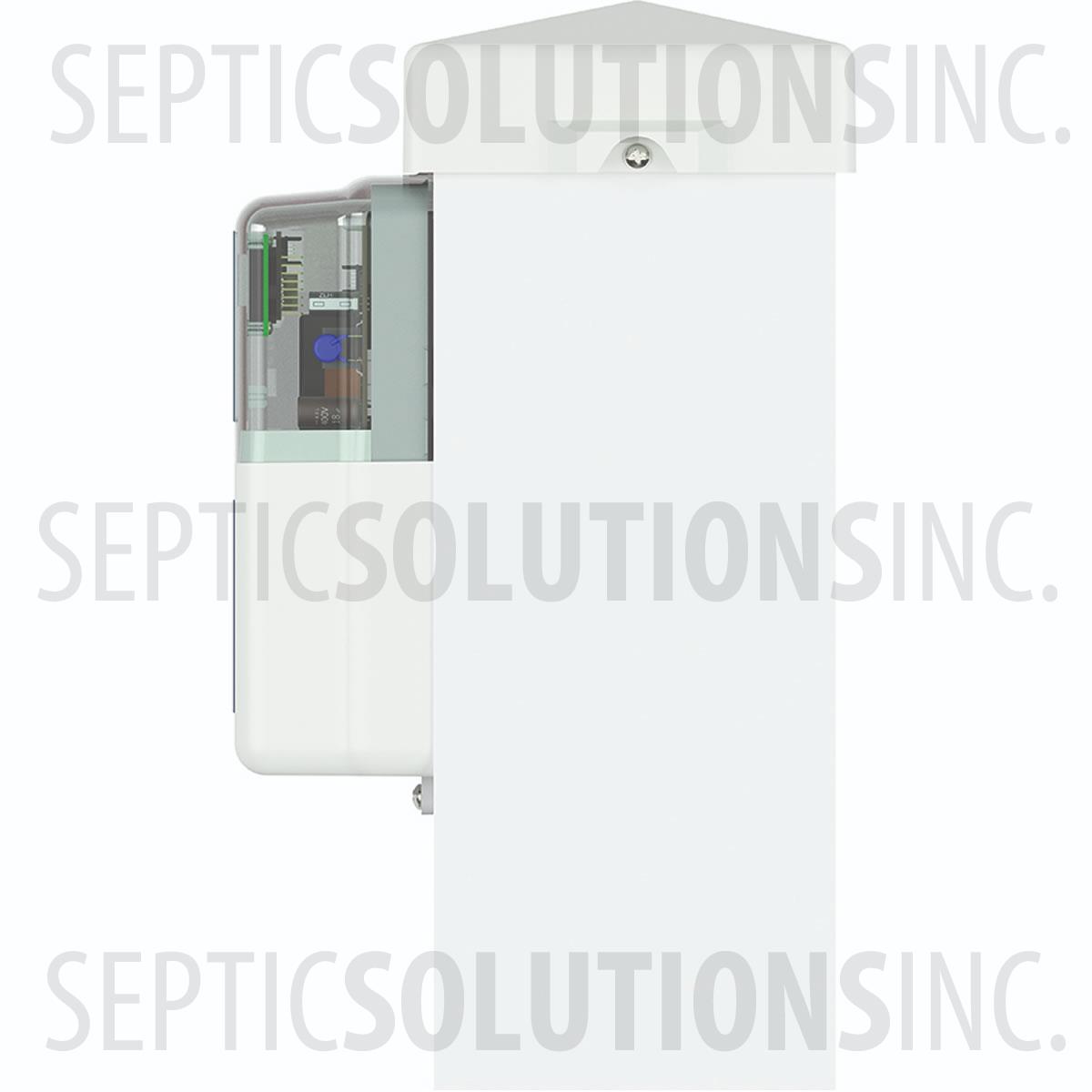

  • 42.5'' Tall Watertight Pedestal with High Water Alarm
  • Alderon Part #2011786, Model #PPMTS1X11X3
  • Controls Single Submersible Pump up to 15 Amps at 120VAC
  • 20ft Mechanical Alarm Float Switch with Pipe Mount
  • 20ft Mechanical Timer Enable or Pump On/Off Float Switch with Pipe Mount
  • Advanced Data Collection: Tracks Pump Cycles, Pump Run Time, Alarm Events, and Much More
  • Built in Super-Bright LED Alarm Lights, Audible Buzzer: 100 dB @ 10 feet
  • Alarm Test and Mute Switch
  • NEMA 3R Watertight Enclosure
  • 120VAC, 60Hz
  • Three Year Warranty

POWER POST CONTROL PANEL APPLICATIONS

  • Works in Outdoor Applications
  • Watertight Connection Center for Pump and High Water Alarm
  • Timed Dosing and Demand Dosing
  • Mound Systems and Pressurized Drain fields
  • Monitoring Liquid Levels
  • Sump and Sewage Basins
  • Septic Tanks
  • Aeration Systems
  • Cisterns
  • Alerts of Submersible Pump Failure

Alderon PowerPost Simplex Time or Demand Dose Control Panel Downloadable Documents

FileName
Power Post Monitoring InstallationViewDownload
Power Post Monitoring User GuideViewDownload
