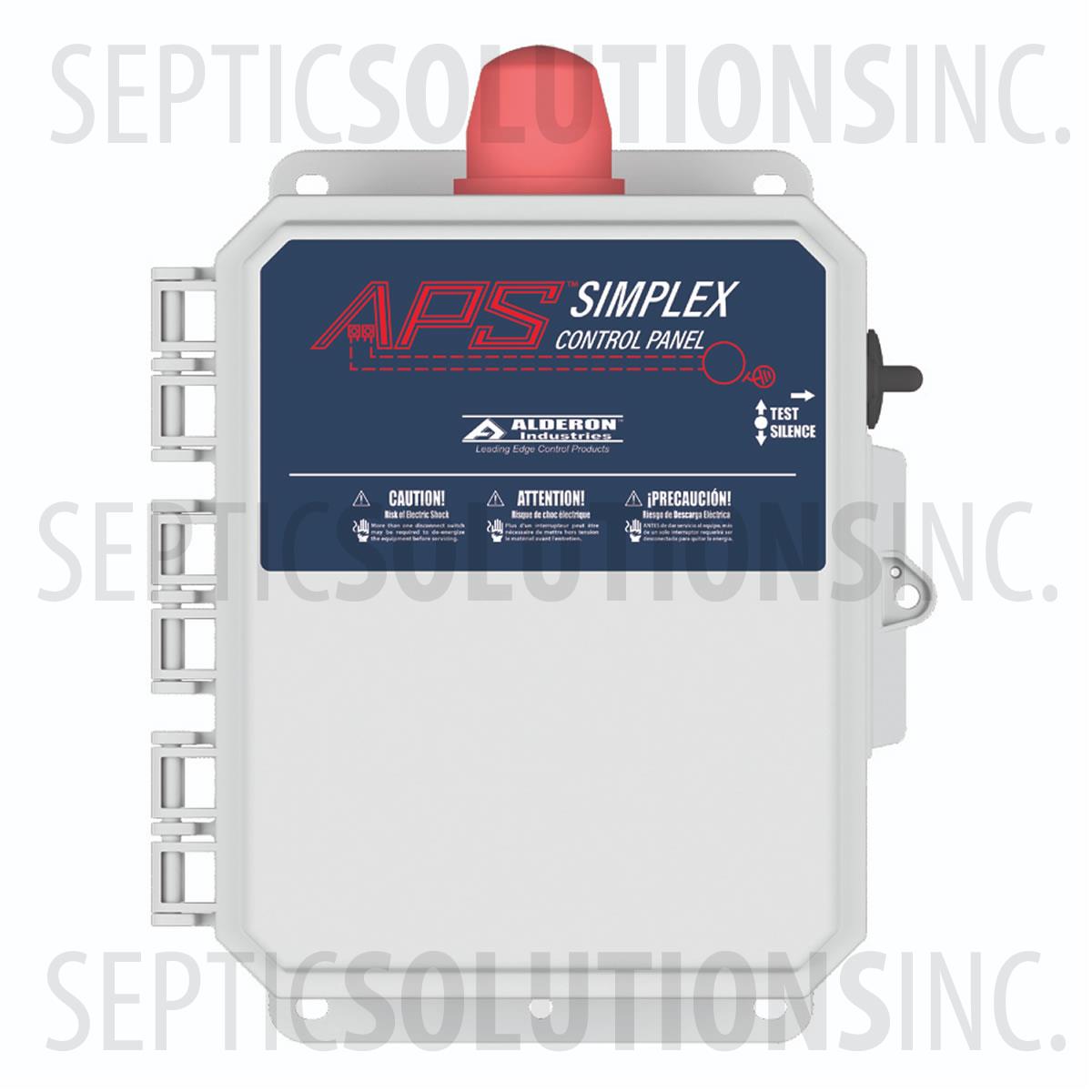

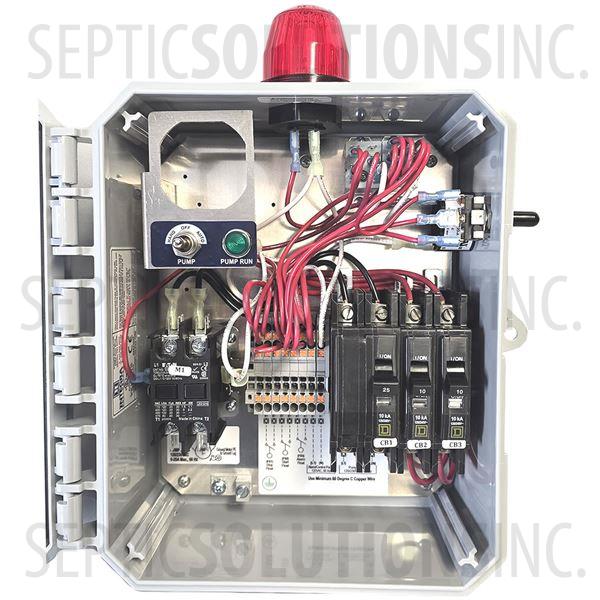

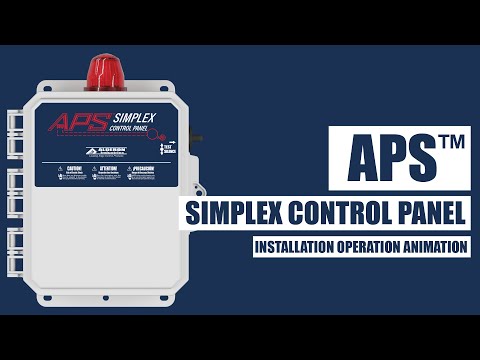

Alderon APS Simplex Control Panel (120/230V, 0-20FLA)


The Alderon APS Series Simplex Control Panel is designed to control and monitor a single submersible pump. Includes pump circuitry, high water alarm, and 3 mechanical float switches for "OFF", "ON", and "ALARM" controls.

Made In USANEMA 4XUL Listed

In Stock

$589.00MSRP: $699.00

Item #:APS20-1-5

Manufacturer: Alderon

Alderon APS Control Panel Features

  • 120/208/230VAC, Single Phase, 0-20 FLA
  • 120/208/230VAC Power Input for Pumps, 120VAC Power Input for Alarm/Control Circuit
  • 20 Amp Pump Circuit Breaker
  • 10 Amp Alarm/Control Circuit Breaker
  • (3) Mechanical Floats w/ 15ft Cords
  • 360 degree red alarm light, High decibel audible buzzer (100 dB)
  • Pump run light indicator
  • Pump Hand/Off/Auto heavy duty toggle
  • Alarm On/Test/Mute heavy duty toggle
  • IEC Motor Contactor (2,000,000 cycle rating)
  • Color Coded Wiring, Field Wiring Terminal Strips
  • NEMA 4X Rated Enclosure, UL 508A Listed
  • Dimensions: 10.00'' W x 8.00'' T x 4.00'' D
  • Three Year Warranty

Alderon APS Control Panel Applications

The Alderon APS Simplex Pump Station control panel can operate a pump station with a single submersible pump. This dual voltage control panel can operate a submersible pump up to 20 FLA at either 120VAC or 230 VAC. The APS Simplex Control Panel features separate circuits for the submersible pump and the control/alarm portion of the panel. This means that if the submersible pump fails and trips its circuit breaker, the alarm will still be functional. It also includes the standard features of most simplex control panels which include the HOA switch, Pump Run Indicator Light, Alarm Run/Test/Mute Switch, and the Audible Buzzer and Visual Light Alarms.

  • Sewage Pump/Lift Stations
  • Effluent Pump/Lift Stations
  • Controlling and Monitoring Any 120V or 230V Pump up to 20FLA

Alderon APS Simplex Control Panel Downloadable Documents
